Ingress Installation and Configuration #

Note: Before you start using Ingress, you will need to install the software successfully into your computer. Installing the Ingress software is hassle-free as the Ingress installer contains an installation wizard, to guide you step-by-step in setting up the software completely.


Getting Started – Ingress Installation #

System Requirements #

Before installing Ingress, please make sure your client and server PCs are up to date with the following requirements:

Feature Server
Operating System
  • Windows XP
  • Windows Vista
  • Windows 7, Windows 8
  • Windows Server 2003/2008
  • (32 or 64 bits)
Processor Intel® Core® 2 Duo 2.5 GHz or better
Memory 3 GB of RAM or better
Hard Drive 80 GB
Resolution 1024 x 768 or higher
Feature Client
Operating System
  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows Server 2003/2008
  • (32 or 64 bits)
Processor Intel® Core® 2 Duo 2.0 GHz or better
Memory 2 GB of RAM of better
Hard Drive 50 GB
Resolution 1366 x 768


Installing the System #

For Ingress to function properly, you will need to install these components first:

  • MySQL Server
  • Microsoft .NET Framework 4.0 Full
  • FingerTec Ingress Software
  • OFIS Scanner Driver


Starting the Ingress Installation #

Step 1: Right click the FingerTec Ingress setup file and select Run as administrator.

fingertec ingress pic 1

Step 2: This will prompt the installer to start the Ingress Server – Install Shield Wizard. The Install Shield Wizard will show the required components’ installation status. There are 3 components to be installed before we can proceed with Ingress installation.

  • MySQL Server
  • Microsoft .NET Framework 4.0

Step 3: Click Install to initiate the installation.

fingertec ingress pic 2


Installing MySQL Server #

The first component to be installed is the MySQL Server.

Step 1: At the welcome page, click Next to proceed. At the End-User License Agreement window, select I accept the terms in the License Agreement and click Next to proceed.

fingertec ingress pic 3

Step 2: At the Choose Setup Type window, choose Typical to proceed.

fingertec ingress pic 4

Step 3: At the Ready to install MySQL Server 5.5 window, click Install to immediately start the installation. When the progress bar completes, you will be prompted with MySQL Enterprise window.

fingertec ingress pic 5

Step 4: At the MySQL Enterprise window, click Next Next and Finish to launch the MySQL Instance Server Configuration Wizard.

fingertec ingress pic 6fingertec ingress pic 7

Step 5: Once the installation of MySQL Server completes, the program will launch the MySQL Server Instance Configuration Wizard. You need to click Next 9 times until you reach the security options window. Make sure that on each page before you clicked next, the selections are as shown as the screenshots below.

fingertec ingress pic 8fingertec ingress pic 9fingertec ingress pic 10

Step 6: At the Modify Security Settings, enter your new Root Password and enter it once again for reconfirmation. Click Next > Execute to start the configuration. Once done, click Finish.

fingertec ingress pic 11fingertec ingress pic 12


Installing Microsoft .NET Framework 4.0 #

The next component that the installer needs to install is the Microsoft .NET Framework 4.0. The FingerTec Ingress Setup will detect and determine if the computer has already been installed with the Microsoft .NET Framework 4.0. It will skip the installation if it has been installed. If it has not been installed, the FingerTec Ingress Setup will install it automatically.

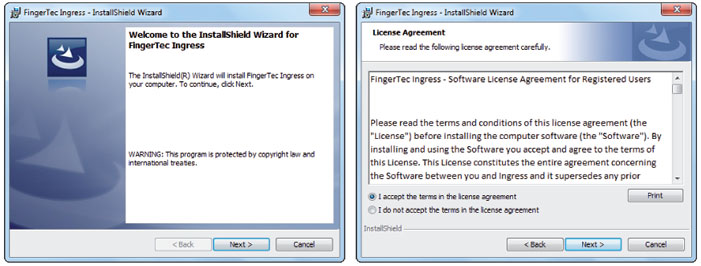

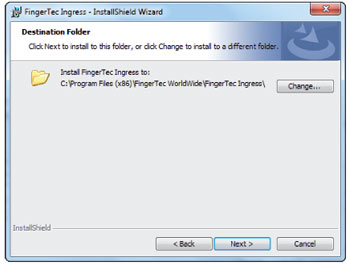

Step 1: Upon completing the installation of the MySQL Server and Microsoft .NET Framework 4.0, the next component to be installed is the Ingress Server. Click Next, select I accept the terms in the license agreement and click Next to proceed. Choose the installation path and click Next.

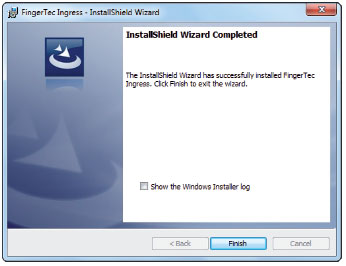

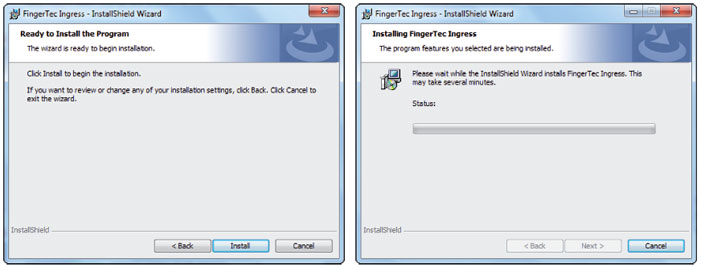

Step 2: Select Complete and click Next. Click Install to start the Installation and click Finish when the process is complete.


Installing OFIS Scanner Driver #

The last component to install is the OFIS Scanner Driver. The Ingress Setup will detect and determine if the computer has already been installed with the OFIS Scanner Driver and skip the installation if has. If it has not, the Ingress Setup will install it automatically.

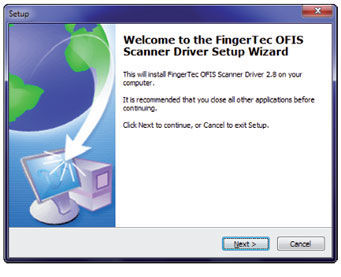

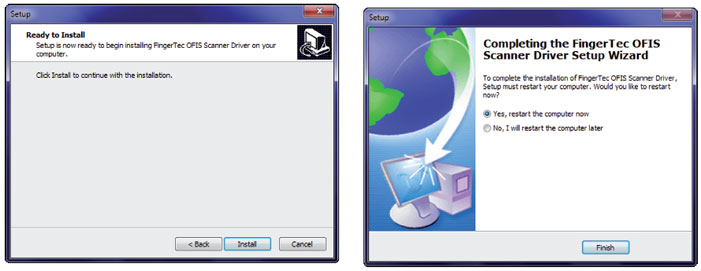

Step 1: Click Next and click Install to start the installation. Upon completing the installation, you will need to restart the computer for the changes to take effect. Please select No, I will restart the computer later and click Finish to proceed to the next step.


Completing Ingress DB Installer #

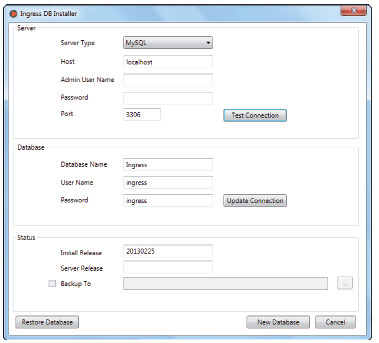

The Ingress Setup will then prompt the Ingress DB installer window.

Note: It is very important to test the server and database connection before you start using Ingress. If you do not perform this step, you will not be able to log into Ingress.

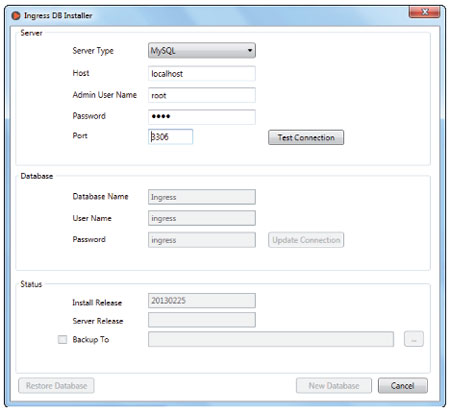

Step 1: Insert the Password and click Test Connection.

Step 2: Once the server connection is established, it will open up the option for Database. Insert the User Name and Password for the Database and click Update Connection.

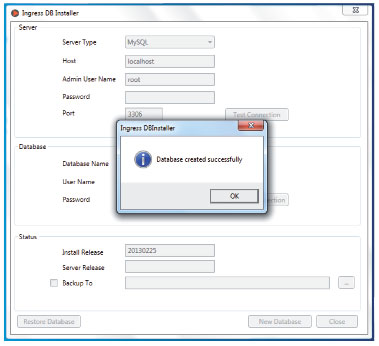

Step 3: After the Database connection is established, click New Database to create a new database.

Step 4: Click Finish to complete the installation.


Ingress Startup #

Step 1: Once the installation has completed, the Ingress icon will be available at the desktop. Right click the icon and select Run as administrator.

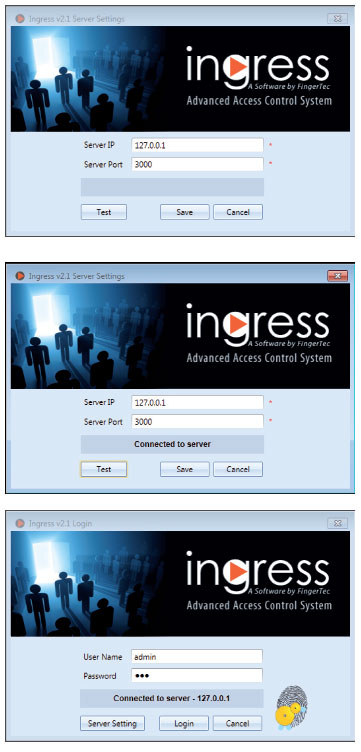

Step 2: The Ingress client will validate the database connection from the server. Once the validation has been obtained, insert the Server IP Address and Server Port to establish connection. Click Test to test the connection. When the connection has been established successfully, click Save to save the Server IP Address and Server Port into the computer for future references.

Step 3: Now you will reach the Ingress Login Window. Insert the User Name and Password to log into Ingress. Default User Name: admin , Password: 123. You can change the User Name and Password under Ingress User Accounts. Click Login to log into Ingress. If you wish to reconfigure the server settings, click Server Setting. You can also log into Ingress by using your fingerprint instead of the username login. You will need to enroll your fingerprint template(s) under User Account before you can login using this method.
